MEMECO Drip Line (Non-PC) MEM_DLN

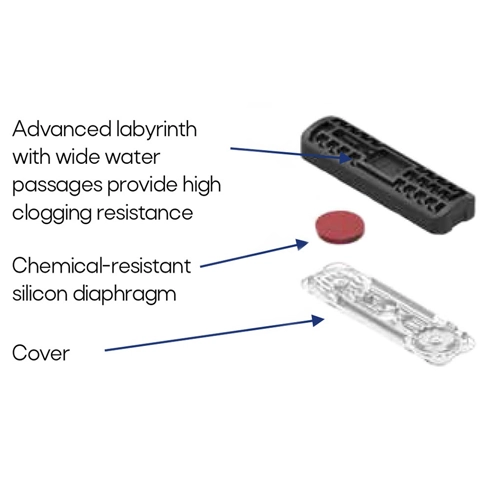

Drip line GR16 is an integral Drip line manufactured in various wall thinkess, flowrates, and dripper spaces. Drip lines utilizes a cylindircal dripper, designed with a large cross-sectional labyrinth. This configuration provides a turbulent water flow which minimizes the formation of residues that may cause clogging. Drip lines are manufactured with two outlets and one inlet filters which ensure high resistance to clogging and reliable long life performance. Drip line is a durable thick walled drip line, ideal for field crops, orchards, greenhouses and landscapes.

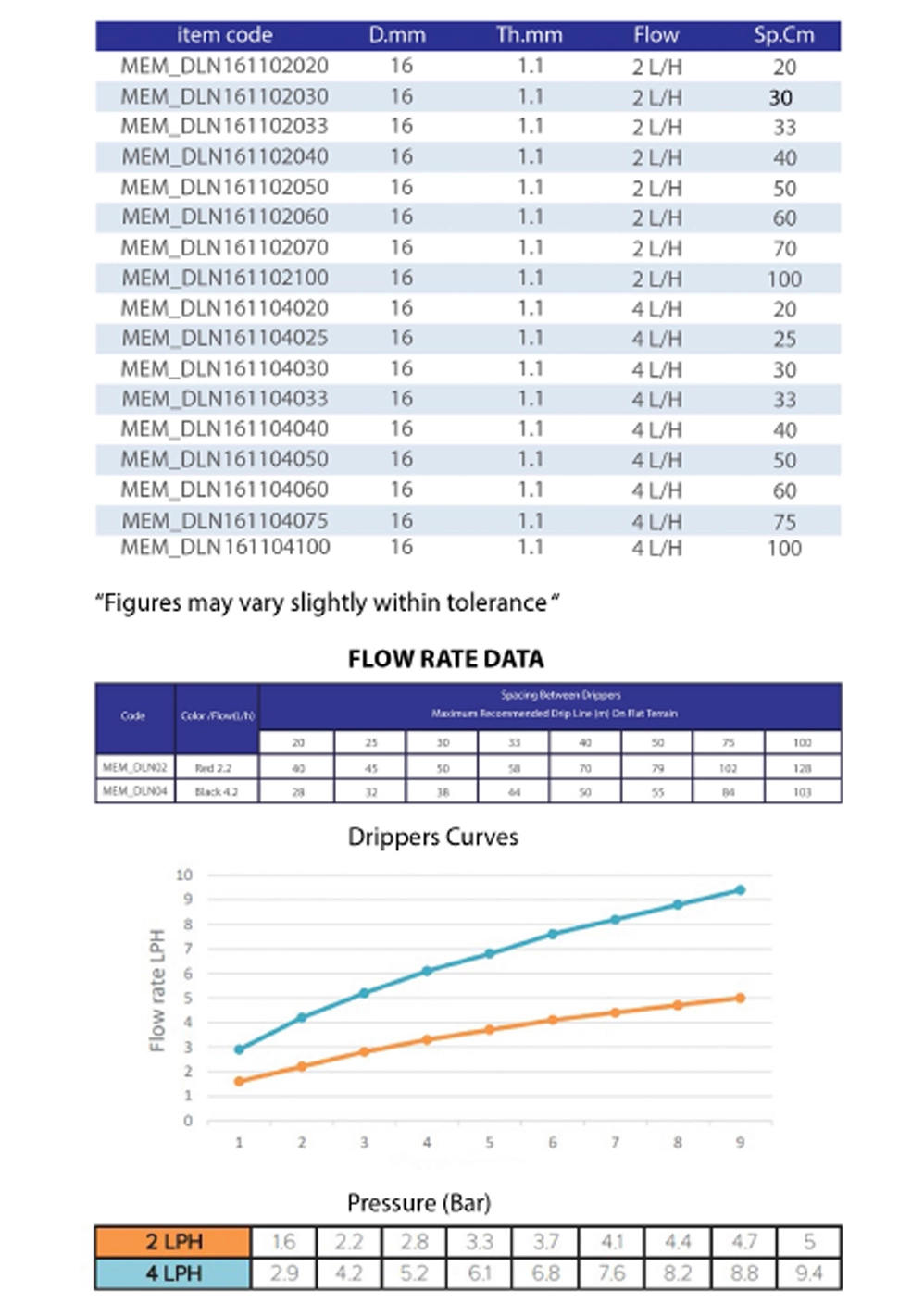

Specifications for Drip Lines:
1. Dripper Flow Rates:
• 2 liters per hour (2L/Hr) and 4 liters per hour (4L/Hr).
2. Dripper Spacing:
• Starts from 20 cm (centimeters) and can be customized up to 150 cm (1.5 meters).
3. Pressure Compensation:
• Operates effectively within a pressure range of 0.9 to 1.1 bar (approximately 13 to 16 psi).
4. Maximum Recommended System Pressure:
5 Bar (approximately 72.5 psi).
5. Tubing Dimensions:
• Tubing Outer Diameter (OD): 16 mm (millimeters). • Tubing Inner Diameter (ID): Approximately 13.8 mm.
• Wall Thickness: Ranges from 0.8 mm to 1.1 mm.
6. Coil Length:
• Coil Length: Available in 400 meters per coil.
7. Recommended Minimum Filtration:
• For 4L/Hr Drippers: Recommended minimum filtration is 120 mesh. For 2L/Hr Drippers: Recommended minimum filtration is 150 mesh.
8. Material:
• Both Drip line and Drippers: Made of durable polyethylene material.
• Polyethylene is a commonly used material in drip irrigation components due to its durability, resistance to corrosion, and suitability for use with water and agricultural applications. It is known for its ability to withstand exposure to sunlight, chemicals, and varying environmental conditions, making it a reliable choice for drippers used in irrigation systems.
Limited warranty for Drip Line
warrants Drip Line GR16 to be free from environmental stress cracking for a period of 7 years from the manufacturing date.
